Social Media Cards with @vercel/og

Recently I added social media cards to this blog. Social media cards are images which are displayed, when you or someone else post a link to your content on a social media platform. Posts with a nice looking image are more often clicked, as those without an image. Lets see how we can implement them.

I've implemented social media cards many times before and I've used many different techniques to implement them, but all of them had their downsides.

The simplest way is to create the social media cards manually. Just open figma or a similar tool and create a card for each post. This approach works, but it is very error prone and time consuming. We had to remember to create a new card, every time we create a new post.

Another approach is it to create a background image and insert the texts and the metadata with a canvas library like node-canvas. This approach is very well described in this Learn With Jason episode. But with a canvas library we have to specify on which coordinates we want to render our texts and it does not wrap automatically if it becomes to long.

We could also use an external service like cloudinary. The post of Jason describes this approach very detailed. Cloudinary is able to break texts on a certain width, but the api is not very intuitive and the largest part of the card is an image which must be build with an external tool.

With an SVG we can define our image as code, which is pretty neat. But SVG is not able to wrap texts. We can use opentype.js to calculate the width of our texts and to wrap it manually. Finally we have to convert the SVG to a PNG, because the most of social media platforms do not support SVG. This approach could work, but requires a lot of code and it is very complicated.

If all these solutions have problems with wrapping texts or require us to build the image with an external tool, why could we just use HTML+CSS to define our image? This is possible! We can create our card with HTML+SVG+CSS, open a browser and create a screenshot of the result. I've used this approach in the past and it worked well. The problem is that the process is very slow. This example creates the cards during the build. Creating the cards during the build requires external caching, because it slows down the build extremely. Also generating cards with this approach in a serverless function is often not possible, because it requires a browser within the function which breaks the size limit of those functions.

@vercel/og promises a new way of generating social media cards, which does not have the downsides of the other approaches. The library uses Satori under the hood. Satori describes itself as follows:

Enlightened library to convert HTML and CSS to SVG.

We can use HTML+SVG+CSS to create an image without the requirement to start a browser for a screenshot. This sounds exactly like the solution I've been looking for. So let's try it out.

First we have to install the package from the npm registry:

After the installation we have to create an edge function, which renders our social media card.

This was easy, so lets try to create something more complicated.

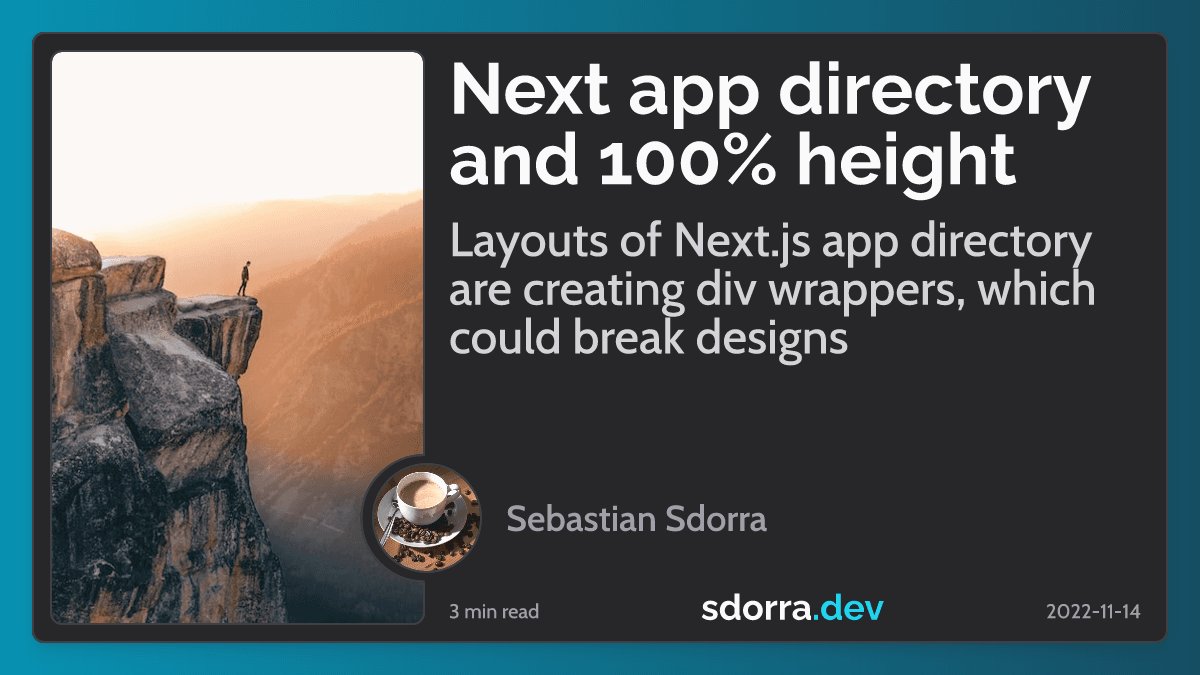

I've headed over to figma and started to create an example social media card. I've ended with the following:

Ok, now lets see if we can implement this with @vercel/og.

The first hurdle that I had to overcome was the usage of custom fonts. The figma template uses Raleway and Cabin. These are the same fonts which are used on the website.

Unfortunately we can't use the @next/font package with Satori. So we have to copy the font files to our project.

In an edge function we can't access the filesystem, but we can use fetch to load the fonts:

Than we have to configure our fonts in the ImageResponse:

Now we are able to use the fonts in our jsx:

@vercel/og offers experimental Tailwind support and I love Tailwind so I decided to use it.

In order to use Tailwind utilities, we can use the tw attribute on any element:

The first problem I've noticed is that my Tailwind config was not used. It looks like @vercel/og uses the default config and ignores the configuration of the project.

The second problem I've noticed is that not all utilities seem to work. I'm not sure what the reason for that is, but some utilities work and others not. For example the gradient utilities are not working, although those CSS properties are supported by Satori. Maybe utilities that use CSS variables are not supported? However, the following utilities I want to use are not working as expected:

• bg-gradient-*, from-*, via-* and to-*
• object-cover
• rotate-*

Another problem took me some time. In a normal Tailwind project, the Tailwind preflight is loaded, which removes the default browser margins and paddings from each element. This does not happen for @vercel/og and it took me some time to figure out where the spacings were coming from. I've fixed it by just using div and span tags. Semantics of elements could be ignored here, because in the end we will create an image and all the elements will be gone anyways.

By the way, the debug option on the ImageResponse is pretty handy. If it is used, every element gets a colored border, which helps to determine which element takes how much space.

Ok, enough about problems and workarounds, here is the code:

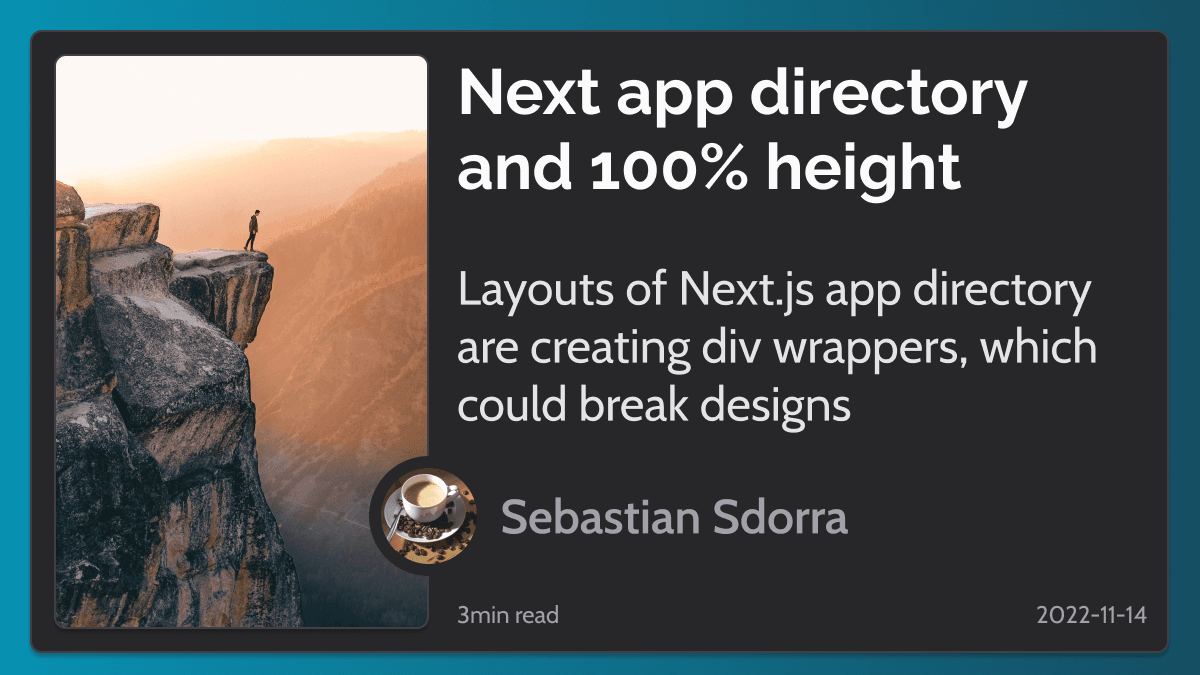

With about 120 lines of code I was able to create the following image:

Now it is time to deploy it to vercel.

The first deployment to vercel ends with the following error:

It took me some time to figure out what is going on. I've created a separate post about this problem together with my workaround.

After I worked my way around the size limitation of the edge function, the deployment was successful but the og endpoint responded with an error 500. The error in the vercel log did not help at all. So I started to look at the code and began to comment out parts of the code. Fortunately it didn't take very long to find out that the image of the post was the problem. It looked like there is another size limitation. The image was loaded from Unsplash and about 7mb in size. Luckily Unsplash has an api to resize the image, so we can fetch the image in exactly the size we need.

After this fix we are able to generate social media cards on our production site.

Now it is time to link our social media cards in the header of our post page, so that the social media networks are able to find the image. Therefore we are creating a head.tsx file with the following content:

We use og tags which are accepted by most of the social media sites. Except Twitter where I've had strange results if I only used og tags. So I've added the Twitter tags besides the og tags.

Now we can test the results with socialsharepreview.

Even if there are a few stumbling blocks with @vercel/og, it is the best solution for social media cards I've worked with so far.
